Fantoni USA

Glass wall systems

I-WALL integrated wall system, includes aluminium framing, glazing, doors and hardware, acoustical wall panels and complete installation.


225 Crossroads Blvd #199
Carmel, CA 93923


info@fantoniusa.com
fantoniusa.com
(888) 692-7377

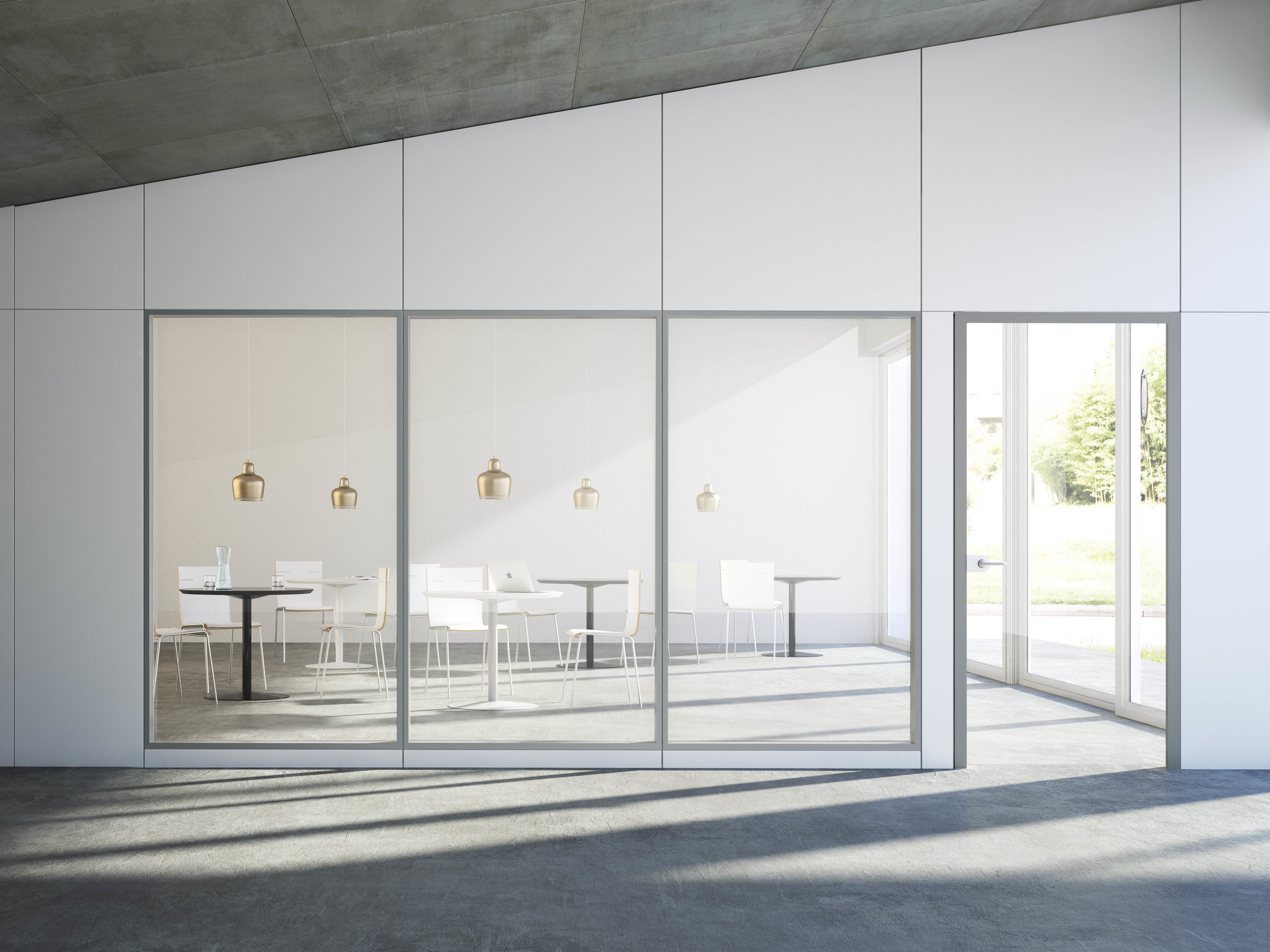

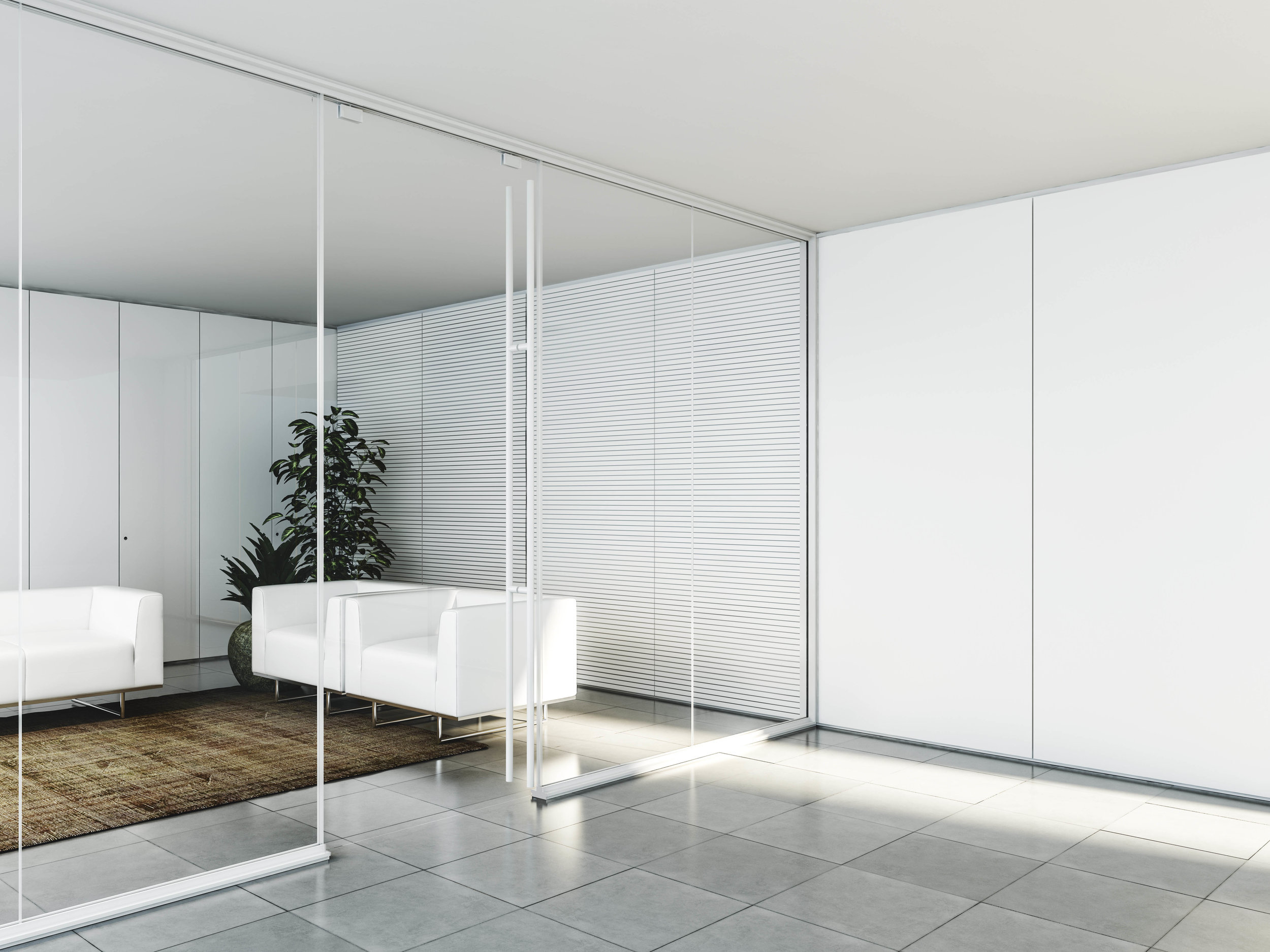

I-Wallspace

Integrated wall system. I-Wallspace is a partition wall system born to invite original design: With glass as the signature material, it integrates easily with Fantoni's radiant and sound-absorbing systems, providing total design and creative freedom to produce full and complete solutions.

For more contemporary spaces, the real focus is on glass and its unique qualities: transparency and brightness make for an innovative partition, a single full-height pane light with a concealed profile sunk into the floor or ceiling. Without making spaces feel cramped, the system offers separate and discreet areas, which nonetheless remain in close contact with the rest of the working environment.

This vision of architecture determines the quality of the space, freeing it from the rigid confines of walls, and instead designing and dividing it with light, bright, mdynamic structures.


The I-Wallspace partitioning system provides mthe perfect blend of technical requirements and aesthetic excellence: its design is versatile, it can be accessorized and structured to include cable runs and can be complemented by sound-absorbing systems.

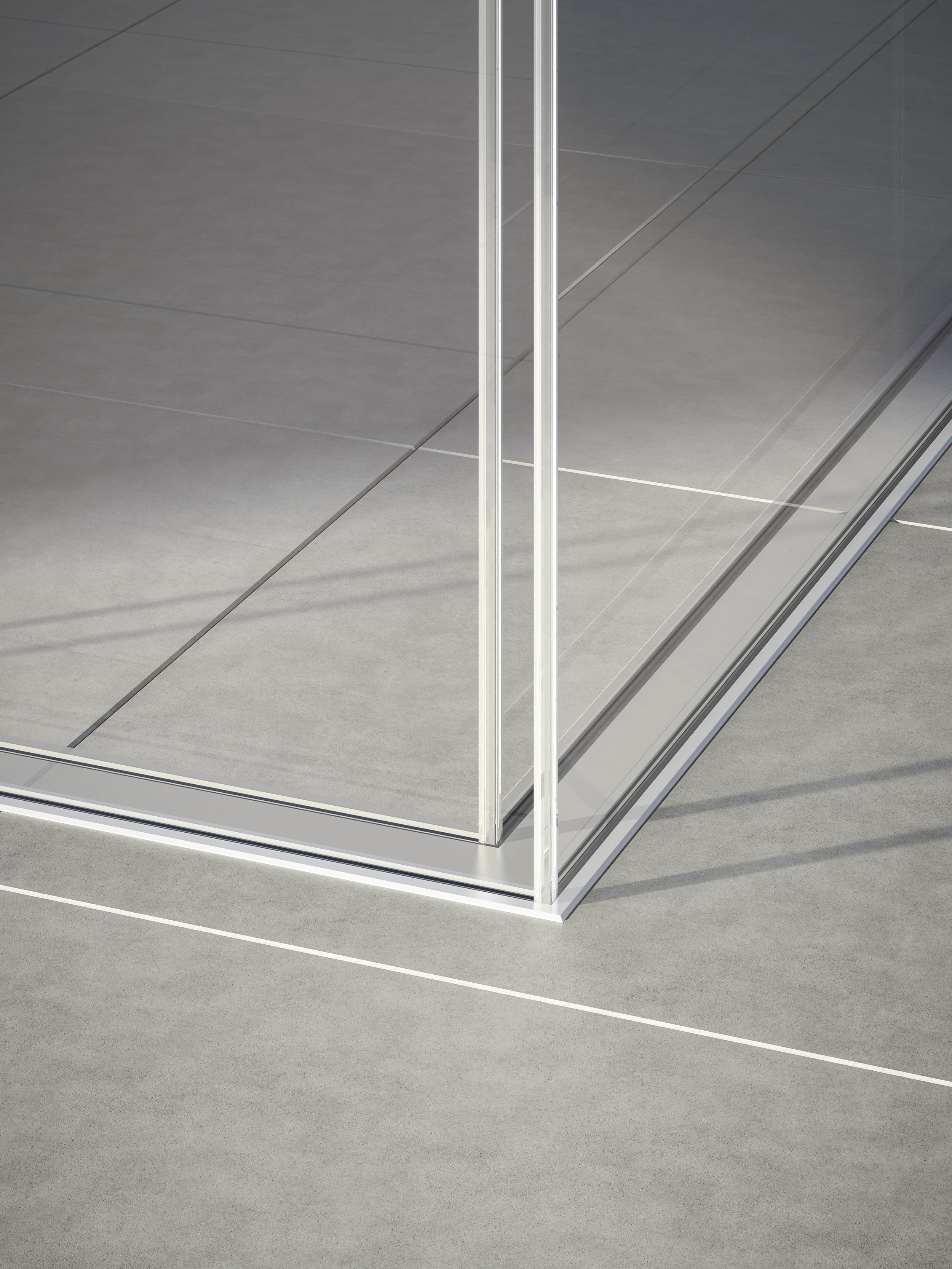

The system can easily be integrated with any type of ceiling and wall, using frame sections concealed within a floating floor or counterceiling. This innovation makes it possible to house acoustic partitions, forming a barrier to increase soundproofing levels by up to 41dB.

Climacoustic
